Getting Started

FA³ST Service uses the concept of an open architecture. This means, it is designed to be easily extenadable and customizable.

The main components of FA³ST Service are AAS Model, which basically is a representation of the meta model classes of the AAS such as Asset Administration Shell, Submodel, SubmodelElement, or Property, and Core, which implements all the processing logic. Besides those two central components, FA³ST Service offers multiple interfaces that each can have different and/or custom implementations. FA³ST Service already ships with a number of so-called default implementations of these interfaces depicted by the light-grey boxes to the left and right in the figure.

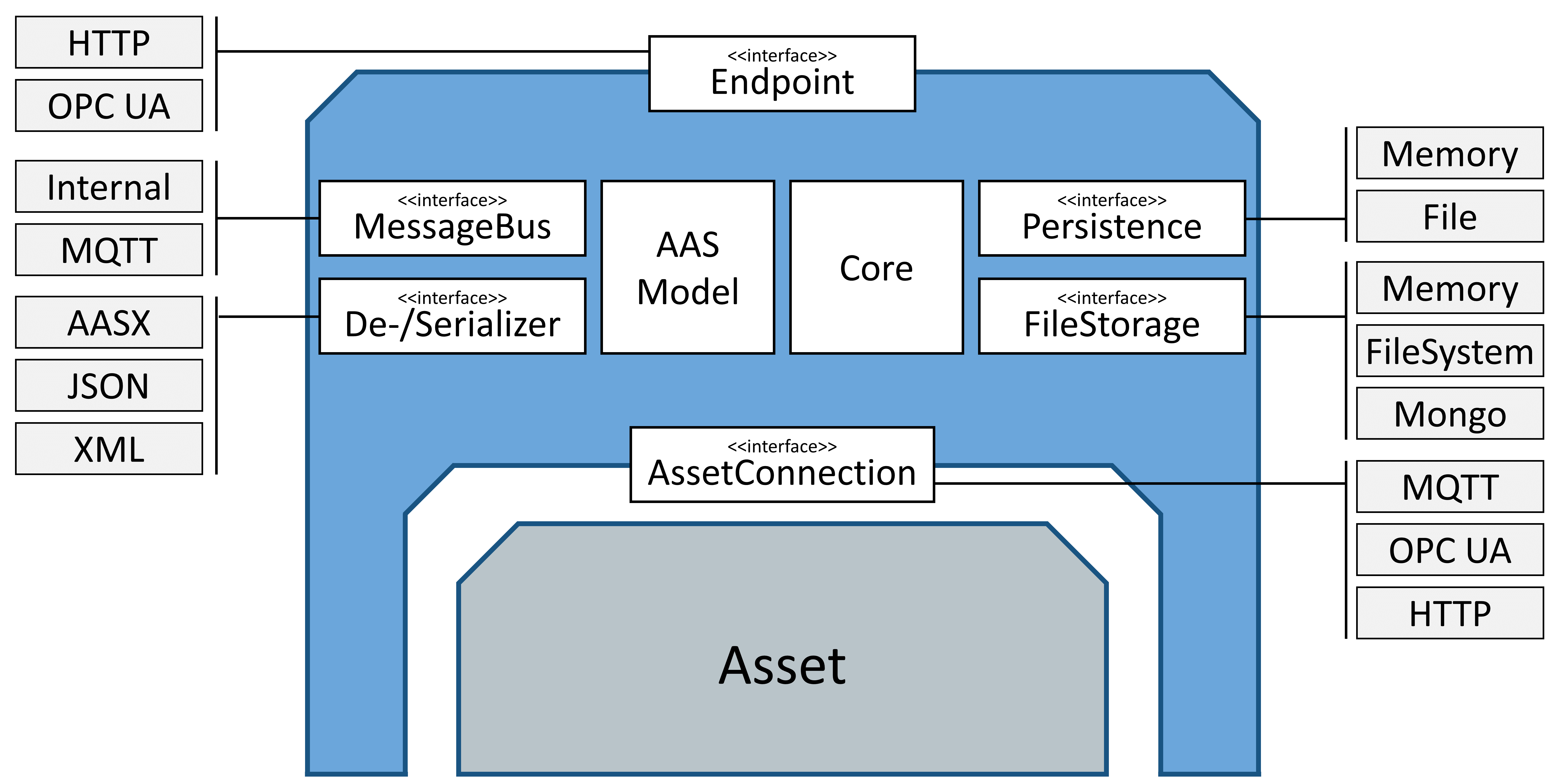

High-Level Architecture of FA³ST Service.

The interfaces provide the following functionalities:

• Endpoint: Communication with the DT from the outside

• MessageBus: Communication & synchronization between FA³ST Service components

• De-/Serializer: De-/Serialization of AAS models in from/to data formats

• Persistence: Persistent storage of data (model + values)

• FileStorage: Peristent storage of complementary files (e.g. PDF files linked from the AAS)

• AssetConnection: Synchronization with underlying asset(s)
